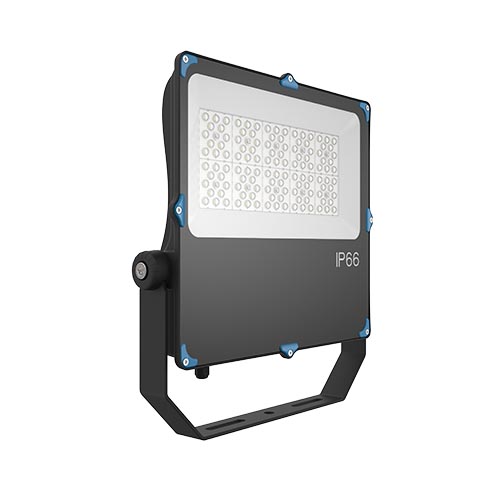

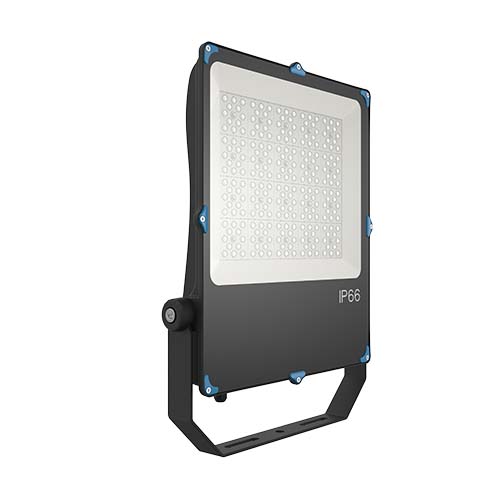

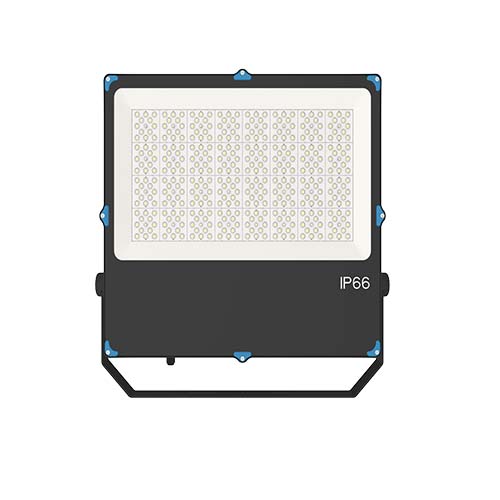

THEA LED Flood Light-A

The THEA Series Flood Light Fixtures 10W to 400W, widely used for architectural lighting, landscape lighting, billboard lighting, small sports fields such as tennis courts / basketball courts / badminton courts, outdoor parking lot, tunnel,etc

●10W -400W

●High Efficiency up to 180LM/W

● Beam Angle:Symmetric 30° 60° 90° 120° Asymmetric 80*150°

● IP66 water-proof

Send Email:

[email protected]

Products DETAILS

THEA LED Flood Light-A

10w to 400W LED Outdoor Flood Light with Symmetric 30° 60° 90° 120° Asymmetric 80*150° Beam Angle Classic Ultra Thin Design

Outdoor Led Flood Light features:
  1. High Efficiency up to 180LM/W for finished product
  2. Symmetric 30° 60° 90° 120° Asymmetric 80*150° Beam Angle
  3. Integrated Die-Casting Aluminum,Elegant Appearance
  4. Temper Glass,Surface Coating Process,Excellent Corrosion-proof
  5. 10w 20w 30w 50w 80w 100w 150w 200w 250w 300w 400w
Outdoor Led Flood Light Specification
Model NO. Power  Input
Voltage 		Chip Brand Philips Chip
QTY 		Iuminous Flux
(lm) 		Beam
Angle 		IP
Degree 		Lamp SIZE
(MM) 		N.W(KG)
/PC
BS-THEA-FL10-A 10w AC85-265V Lumileds  SMD3030 12 160-170lm/w 7°
15°
30°
60°             90°             120°                    150*80°       		IP66 182*122*47 0.5KG
BS-THEA-FL20-A 20w AC85-265V 24 160-170lm/w IP66 242*169*51 1.1KG
BS-THEA-FL30-A 30w AC85-265V 36 160-170lm/w IP66 242*169*51 1.3KG
BS-THEA-FL50-A 50w AC90-305V 72 160-170lm/w IP66 282*204*52 1.8KG
BS-THEA-FL80-A 80w AC90-305V 96 160-170lm/w IP66 337*269*52 2.0KG
BS-THEA-FL100-A 100W AC90-305V 120 160-170lm/w IP66 394*394*56 3.7KG
BS-THEA-FL120-A 120W AC90-305V 160 160-170lm/w IP66 394*394*56 3.7KG
BS-THEA-FL150-A 150W AC90-305V 180 160-170lm/w IP66 445*392*56 4.0KG
BS-THEA-FL180-A 180W AC90-305V 240 160-170lm/w IP66 445*392*56 4.0KG
BS-THEA-FL200-A 200W AC90-305V 240 160-170lm/w IP66 497*392*56 5.5KG
BS-THEA-FL240-A 240W AC90-305V 320 160-170lm/w IP66 497*392*56 5.5KG
BS-THEA-FL320-A 320W AC90-305V 384 160-170lm/w IP66 503*545*64 7.5KG
BS-THEA-FL400 400W AC90-305V 384 160-170lm/w IP66 503*545*64 8.5KG
1. Light source/ Various wattage optional for THEA LED Flood Lights

THEA LED flood light with full range of wattage and optional light distribution, beam angle is available for multiple applications.

Multiple light distribution for different applications even for stadium and billboard.


2. THEA LED Flood Lights Features
  • Die casting white aluminum case,fashing looking
  • High efficiency heatsink, long life span
  • Optical lens, high lumen
  • IP66 Waterproof design
  • With casette structure, it is easy to install

3. THEA LED Flood Lights Application

Searching for outdoor led floodlights here the right place, it is widely implemented by using flood light fixtures in landscape lighting as wall washing,

wall grazing and shadowing.

  • Applications for LED tunnel Light
  • Outdoor lighting
  • Tunnel lighting
  • Gas station lighting
  • Architectural lighting
  • Landscape lighting
  • Facade lighting
  • Square, Park, Wall of buildings, Church, Hotel, Bridge, Tree, Public area, Landscape etc.

4.THEA LED Flood Lights Installation
  • Socket mounted
  • Ceilling mounted
  • Wall mounted

5.THEA LED Flood Lights under mass production

Related products for LED flood lights

               RHEA LED Flood Light                                   LED Tunnel Flood Light



Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
