ARES LED Sports Light

ARES LED Sports Light-A

ARES LED floodlighting system is an innovative LED pitch-lighting solution supporting the latest TV broadcasting standards. Designed exclusively for sports and multi-purpose venues

● Up to 1800W

● 155Lm/w

● Beam angle:15˚/30˚/60˚/90˚/80*135˚

● IP67 water-proof

●UGR below 22

●TCLI>90 for HD broadcast

Send Email:

[email protected]

Products

Products DETAILS

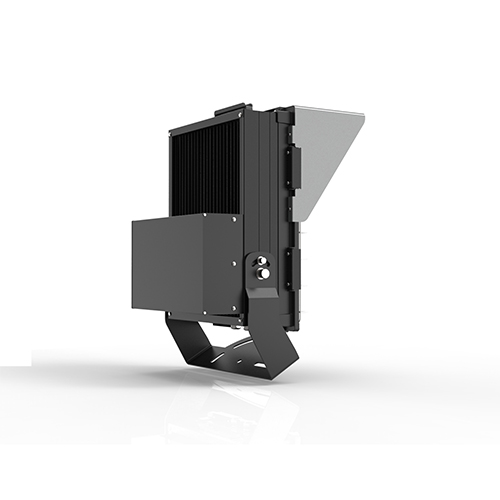

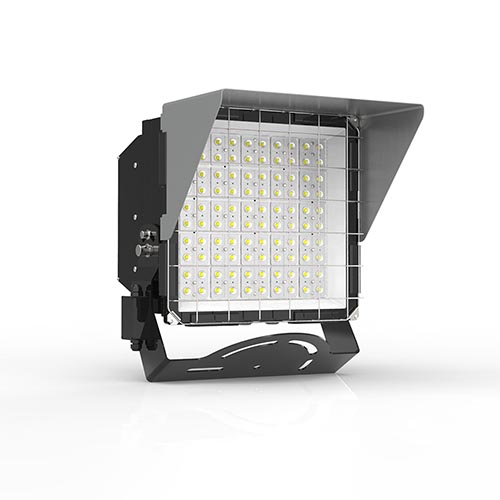

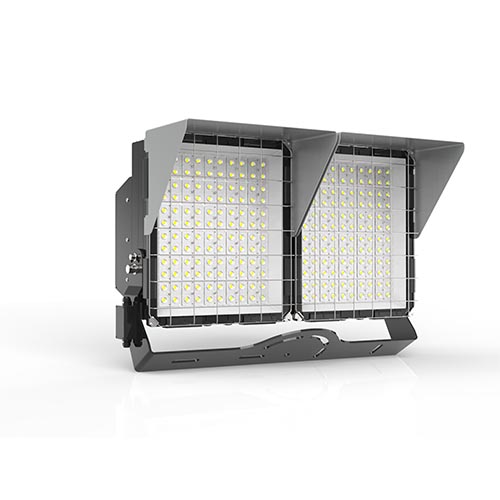

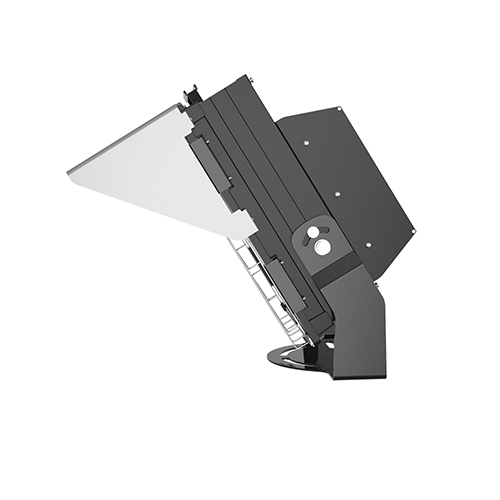

ARES LED Sports Light-A

ARES LED Sports Light 160LPW, With Anti-Collision Net, Anti-Glare Shade, UGR below 22

1. Multiple wattage option, up to 1800W, 160LM/W, SMD or COB light source all available

2. Multiple optics option 15˚/30˚/60˚/90˚/80*135˚

3. Add anti-glare shield makes excellent light pollution control, UGR below 22, and with Anti-Collision net, prevent unknown objects from hitting the lamp body

4. Support position the driver on the bottom of the pole as well, maintenance friendly

5. AL6063-T5 aluminum material with excellent heat dissipation and corrosion resistance

5. TCLI>90 for HD broadcast, DALI dimming/ DMX/ RGB are available

6. IP67 waterproof, widely used for highways, sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), airport, seaport, etc

Item Number	ARES-HM400-A	ARES-HM500-A	ARES-HM600-A	ARES-HM800-A	ARES-HM1000-A	ARES-HM1200-A
Wattage	400W	500W	600W	800W	1000W	1200W
Lumen Output	60000lm	75000lm	90000lm	120000lm	150000lm	180000lm
LED Quantity	200PCS	240pcs	280pcs	480pcs	480pcs	560pcs
Size(MM)	L435W347H211	489347211	542347211	439708211	493708211	546708211
LED Chip	Lumileds 5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	15° / 30° / 60° / 90° / 140×70°
IP Rating	IP67
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Material	Die-casting Aluminum housing+PC lens

ARES LED Sports Lights, LED Stadium Lights Features

ARES LED Sports Lights with wattage 400W 500W 600W 800W 1000W 1200W, other wattage can be customized

1. ARES LED Sports Light with professional optical and thermal design

2. ARES LED Sports Light with anti glare shield, prevent the lighting polution and reduce lighting leakage to damage audience's eyes

3. with anti collision net, protect the lamps, prevent bojects damage the lamps

4. ARES LED Sports Light with various beam angles, can be used for different lighting application.

5. COB or SMD light source all available

6. ARES LED Sports Light with excellent heat dissipation and anti corrosion

7. Humanized design for the sports lights, make the installer / electrician easier to use

8. ARES LED Sports Light with 5mm thickness tempered glass, can reach IK08, and good transparent rate

9. This Sports Light can reach IP67 waterproof

6. ARES LED Sports Light can use COB light source, with strong light penetration and long distance illumination

Application

Widely used for highways, outdoor/ indoor sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), warehouse, airport, seaport, etc.
