CHAOS LED High Mast Light-B1
● 500W 600W 1000W 1200W 1500W 1800W
●>150lm/W 160lm/W
● Beam angle: 7˚ / 15˚ / 30˚ / 60˚ / 90˚ / 120˚ / T2M(70*155˚)/T3M(80*155˚)
● IP66 water-proof
Products
Products DETAILS

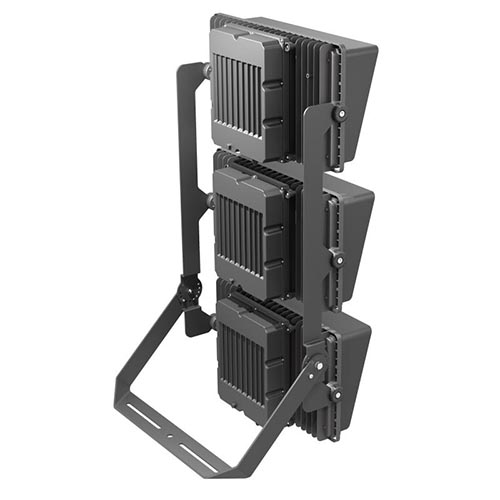

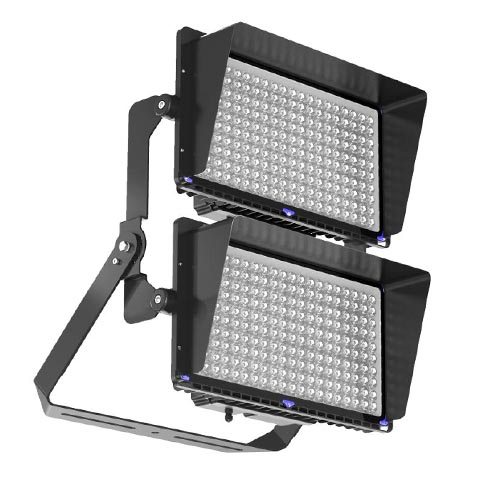

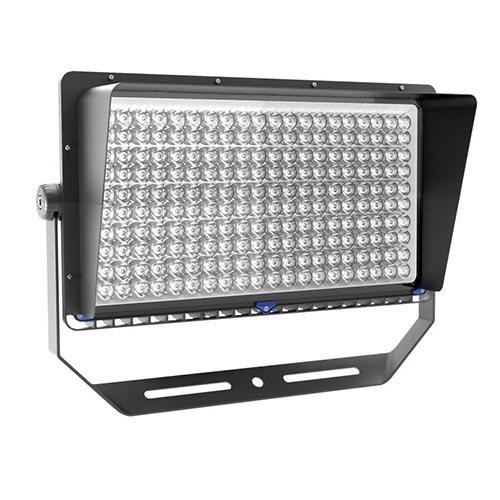

CHAOS LED High Mast Light-B1
CHAOS LED High Mast Flood Light LED Stadium Sports Light Fixtures
Features & Benefits:
- Power Range: 500W 600W 1000W 1200W 1500W 1800W
- LED Efficacy: >150lm/W 160lm/W
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
- CRI: ≥70Ra/80Ra
- Beam Angle: 7˚ / 15˚ / 30˚ / 60˚ / 90˚ / 120˚ / T2M(70*155˚)/T3M(80*155˚)
- PF: >0.97
- Power Supply Efficiency: >92%
- THDi: ≤10%
- Surge Protection: 10KV/20KV
- Control: Photocell / 0-10V / DMX / Dali Dimming Optional
- Material: Aluminum and PC Optical Lens,Tempered glass
- Color / Finish: Sand Black silver
- Protection Grade: IP67
Chaos -B LED Stadium Sports Light Fixtures
• Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion
• Flexible optical system optimising lighting distributions for best in class results
• Compact and low weight for minimal structural costs
• Fully controllable solution enabling instant lighting, stepped illumination levels and event lighting with dynamic lighting scenarios
Item Number | CHAOS-HM500 | CHAOS-HM600 | CHAOS-HM1000 | CHAOS-HM1200 | CHAOS-HM1500 | CHAOS-HM1800 |
Wattage | 500W | 600W | 1000W | 1200W | 1500W | 1800W |
Lumen Output | 80,000 lm | 96,000 lm | 160,000 lm | 192,000 lm | 240,000 lm | 287,000 lm |
LED Quantity | 1200pcs | 1200pcs | 2400pcs | 2400pcs | 3600pcs | 3600pcs |
Size(MM) | L462*W637*H134 | 462*637*134 | 869*678*152 | 869*678*152 | 1267*678*152 | 1267*678*152 |
LED Chip | Lumileds 3030 / CREE XTE 3535 | |||||
Luminous Efficacy | 160LM/W | |||||
CCT | 2700K-6700K | |||||
CRI | ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K) | |||||
Beam Angle | 7°/ 15° /30° / 60° / 90° / 120°/ T2M (70*155°) / T3M (80*155°) | |||||
IP Rating | IP67 | |||||
Working Temperature | -35℃ to +55℃ | |||||
Input Voltage | AC100-277V/347V/480V, 50/60Hz, >0.92 | |||||
Warranty | 7 years | |||||
Lifespan | >60,000hrs | |||||
Material | Die-casting Aluminum housing+PC lens+ Tempered glass |
1. Features of LED High Mast Flood Lights LED Stadium Sports Light Fixtures
- High Thickness Aluminum Heat Sink Enabling a Long Life of the Lamp
- High Efficiency Anti-glare Aluminum Shells
- Meanwell or Philips LED Driver 10KV/20KV Surge Protection and IP67 Waterproof
- Easy-carry Handle for Convenience of Installation and Transportation
- Two-way Installation High Strength Metal Bracket, with Direction-adjustable High Strong Stability for High Space
- Adjustable ModuleHigh Strength Adjustable Bracket
2. LED LENS and Beam angle of LED High Mast Flood Lights LED Stadium Sports Light Fixtures
Adopt High Brightness Lumileds or CREE LEDs with Efficacy >160lm/W
3. LED Driver of CHAOS LED High Mast Flood Lights
4. Installation of CHAOS LED High Mast Flood Lights
5. Applications of CHAOS LED High Mast Flood Lights
Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.
Most manufacturers design the lighting fixtures implementing lens and reflector technologies for desired light distribution.
These existing LED lighting methods according to the characteristics of the light will spread to a wider area and will also fall on the area that does not need the light and may lead to light pollution which is inefficient in terms of energy savings.
CHAOS-series prevents light pollution and emits the light only to the target area, CHAOS-series has advanced technology to control luminance with low power consumption to provide a simillar level of luminous flux and also to maximize energy savings.
