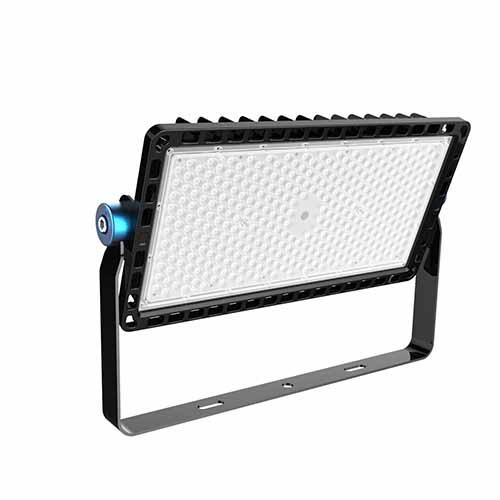

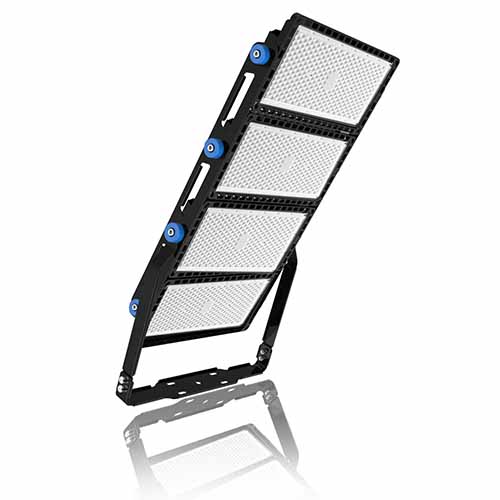

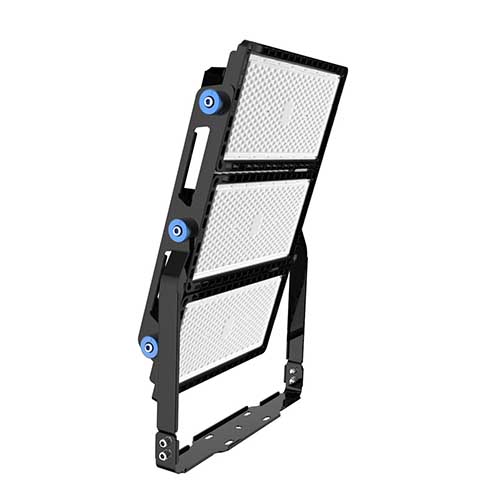

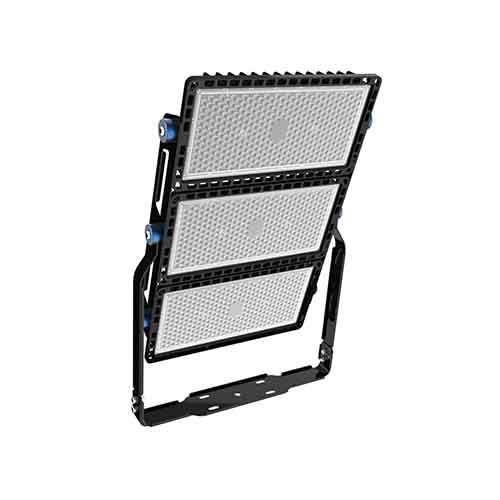

CHAOS LED High Mast Light-B2

CHAOS -B2 LED high mast lights with Product Features & Benefits below:

1. 240w/300w per module, wattage: 240w 300w 480w 600w 720w 900w 960w 1200w

2.Rotatable modules offering maximum customization,

3. Multiple optics available，15˚ 25˚ 45˚ 60˚ 90˚

4. IP66 Waterproof & IK10

5. Unbeatable pricing advantage

CHAOS -B2 LED high mast lights

Model NO.	Power	Chip Brand	CCT	Iuminous Flux (lm)	Beam Angle	Lamp Size(MM)	G.W(KG) /CTN	packing Size(CM) 1pc/CTN
CHAOS-HM240-B2	240w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	427*308.5*108.5	6.5KG	51x35x17cm
CHAOS-HM300-B2	300w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	427*308.5*108.5	7.0KG	51x35x17cm
CHAOS-HM480-B2	480w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	433*523.5*108.5	13.0KG	58x48x17cm
CHAOS-HM600-B2	600w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	433*523.5*108.5	14.0KG	58x48x17cm
CHAOS-HM720-B2	720w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	484*735*108.5	23.0KG	79x57x17cm
CHAOS-HM900-B2	900w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	484*735*108.5	24.0KG	79x57x17cm
CHAOS-HM960-B2	960w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	484*950*108.5	30.0KG	110x57x17cm
CHAOS-HM1200-B2	1200w	LUMILEDS SMD3030	3000K, 4000K, 5000K, 5700K, 6500K	160lm/w	15˚, 25˚, 45˚ 60˚, 90˚	484*950*108.5	32.0KG	110x57x17cm

CHAOS -B2 LED high mast lights application

Widely use in Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting,

Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals,

other large, outdoor maintenance or storage yards and specialty roadway applications, etc
