Bispark Group Limited
HELIOS LED High Bay-B
● 100w 150w 200w 240w
● 130-150Lm/w
● Beam angle:90°
● IP65 water-proof
●Flat honeycomb design - good heat dissipation
Products
Products DETAILS

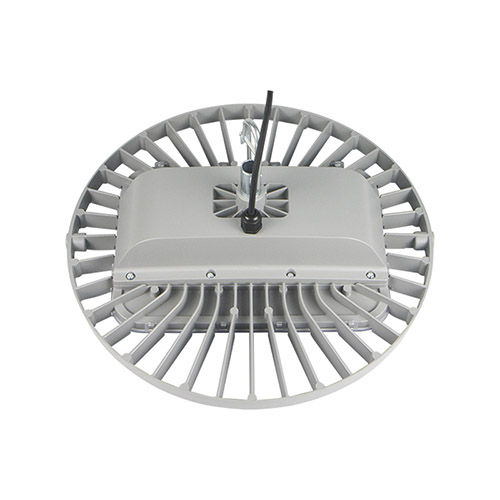

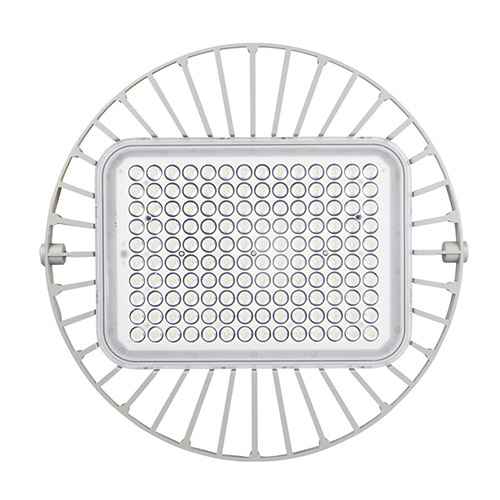

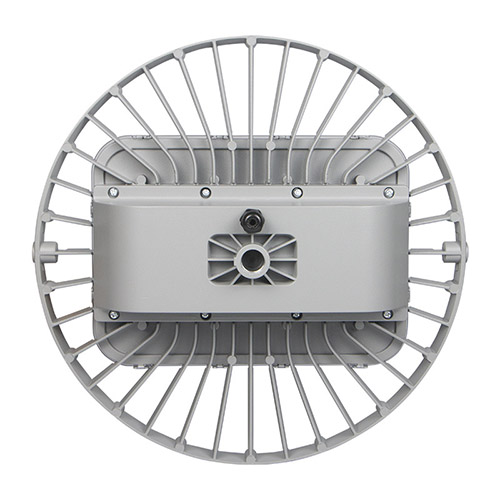

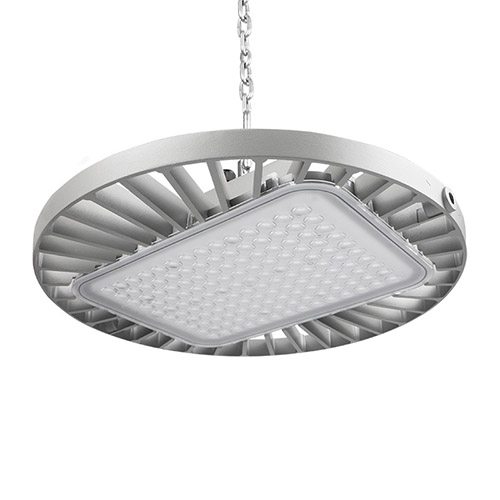

HELIOS LED High Bay-B
LED High Bay Lamp,UFO highbay,highbay
1. 100w 150w 200w 250w, 2700K-6500K
2. 90°degree lens
3. Module design - easy maintenance
4. Flat honeycomb design - good heat dissipation
Helios UFO LED high bay light specification
| Model NO. | Power |
Input Voltage |
Chip Brand | Material |
Iuminous Flux (lm) |
Beam Angle |
Hook to len height(MM) |
G.W(KG) /CTN |
packing Size(CM) 1pc/CTN |
| HELIOS-UHB-100-B | 100w | AC90-305V | Lumileds SMD3030 | Die-cast Aluminum | >130lm/w | 90° | Ø385*85 | 4 | 41*41*13 |
| HELIOS-UHB-150-B | 150w | AC90-305V | Lumileds SMD3030 | Die-cast Aluminum | >130lm/w | 90° | Ø420*85 | 5.5KG | 45*45*13 |
| HELIOS-UHB-200-B | 200w | AC90-305V | Lumileds SMD3030 | Die-cast Aluminum | >130lm/w | 90° | Ø460*85 | 7.0KG | 49*49*13 |
| HELIOS-UHB-240-B | 240w | AC90-305V | Lumileds SMD3030 | Die-cast Aluminum | >130lm/w | 90° | Ø460*85 | 7.0KG | 49*49*13 |
1. Helios UFO LED high bay light specification Dimensions
2. Helios UFO LED high bay light Features
- Integrated heat sink Cold forging aluminium
- 0-10v Dimming/DALI Dimming available
- 120-277V 120-347V & 200-480V Optional
- Lumileds LUXEON 3030 LED • Installation: Chain mount, hook mount
- Integrated heat sink Cold forging aluminium 100w,150w,200w and 240w
- Working temperature: -40℃~+55℃
- IP65 Waterproof
- 5 Years warranty
- Whole die casting aluminum housing
- Clear/Frost tempered glass
- Good package for shipment
3. Helios UFO LED high bay light Applications
- Parking area lighting;
- Ceiling lighting;
- Warehouse lighting;
- High / low bay lighting.
Mass production
