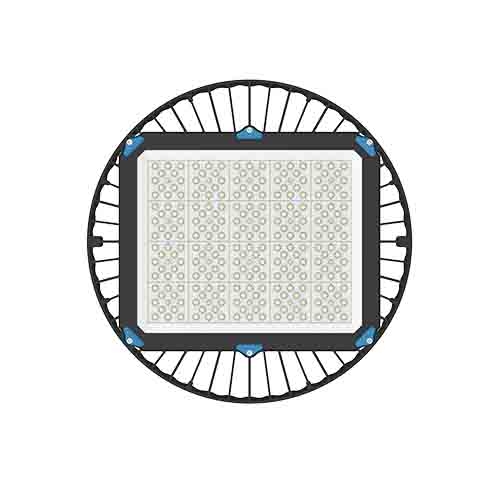

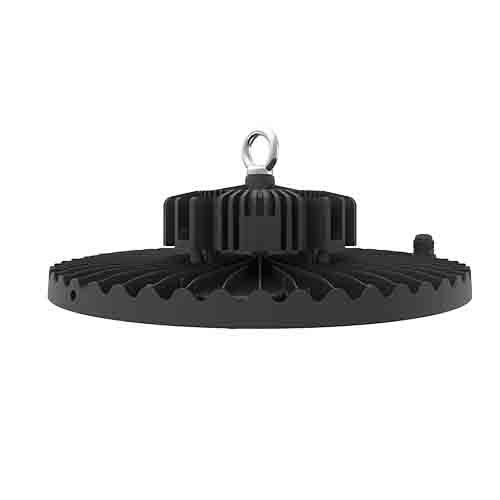

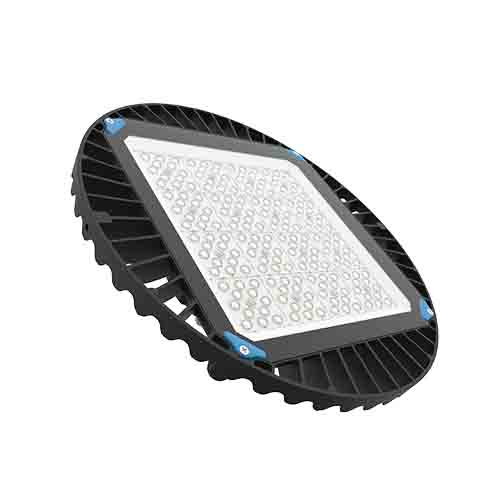

Patent desinged UFO LED high bay light,warehouse lighting, high bay led lamps

1. Private mould, slim and elegant appearance 50w 100w 150w 200w 250w, 2700K-6500K

2. Different Beam Angle Optional 30°/60°/90°/120°are available

3. Module design - easy maintenance

4. Flat honeycomb design - good heat dissipation



Helios UFO LED high bay light specification

Item Number	HELIOS-UHB50-A	HELIOS-UHB100-A	HELIOS-UHB150-A	HELIOS-UHB200-A	HELIOS-UHB240-A
Wattage	50W	100W	150W	200W	240W
LED Quantity	48pcs	108pcs	192pcs	240pcs	240pcs
Size(MM)	φ215*97	φ290*153	φ362*153	φ400*163	φ400*163
LED Chip	Lumileds 3030
Luminous Efficacy	150LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	30° / 60° / 90° /120° / TYPE3
IP Rating	IP66
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty5	years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

1. Helios UFO LED high bay light specification Dimensions



2. Helios UFO LED high bay light Features

•  Integrated heat sink Cold forging aluminium
• Up to 150LM/W,0-10v Dimming
• 120-277V 120-347V & 200-480V Optional
• Lumileds LUXEON 3030 LED • Installation: Chain mount, hook mount
• Integrated heat sink Cold forging aluminium 100w,150w,200w and 240w
• Working temperature: -40℃~+55℃ • IP65 Waterproof • 5 Years warranty
• Whole die casting aluminum housing
• Clear/Frost tempered glass
• Good package for shipment



3. Helios UFO LED high bay light Beam Angle



4.Helios UFO LED high bay light Installation

HELIOS-Series UFO LED high bay light has 3 kinds of installation.



5. Helios UFO LED high bay light  Applications

• Parking area lighting;
• Ceiling lighting;
• Warehouse lighting;
• High / low bay lighting.



Mass production
