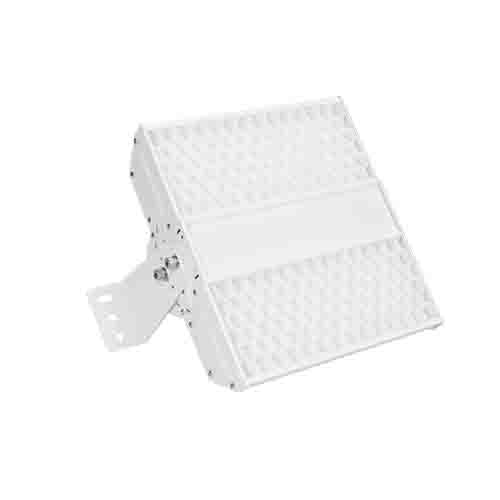

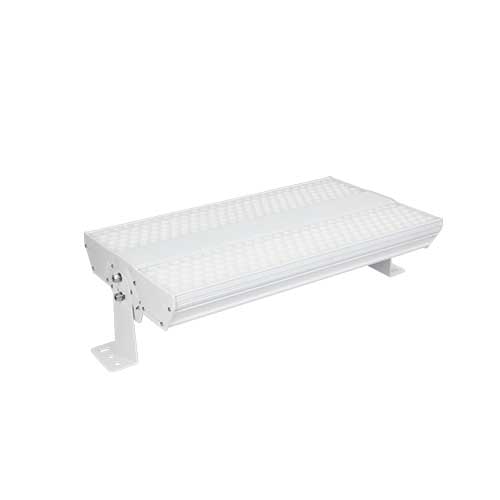

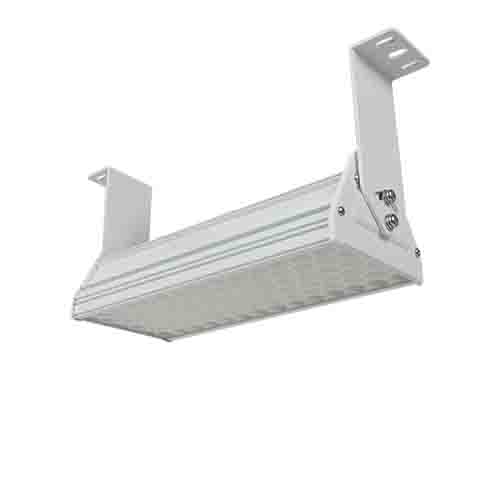

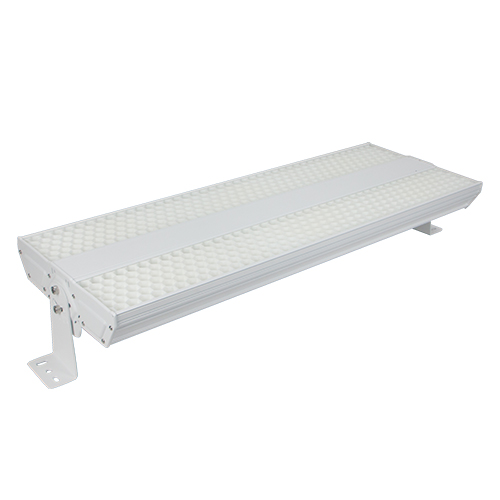

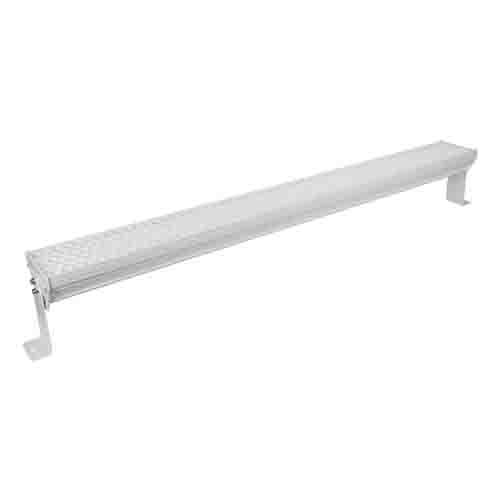

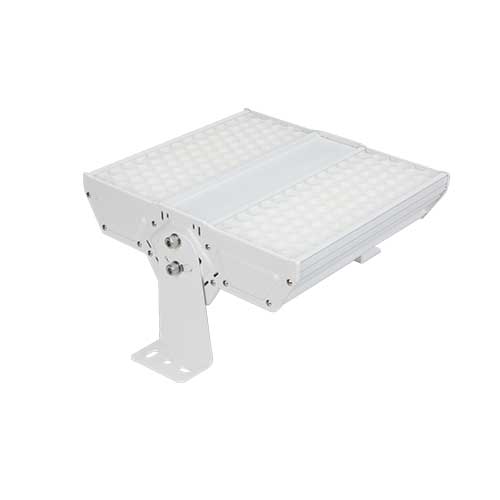

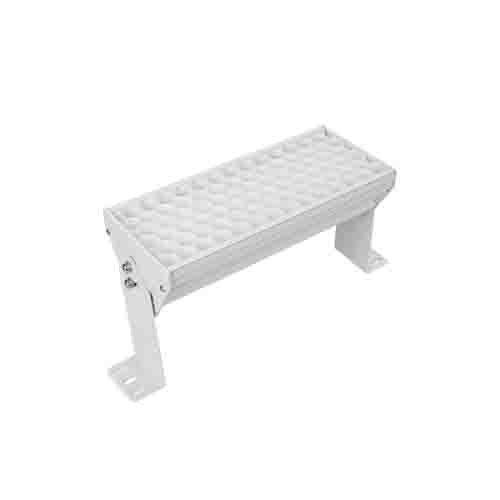

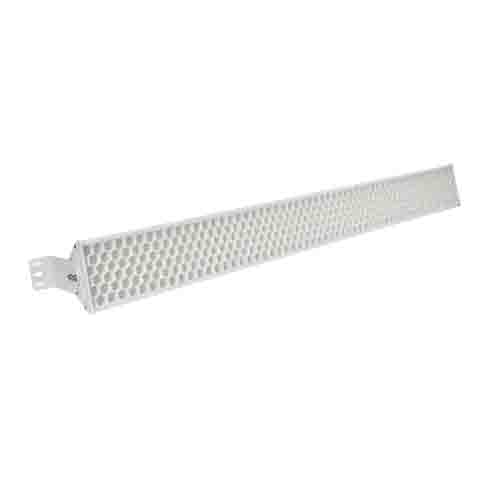

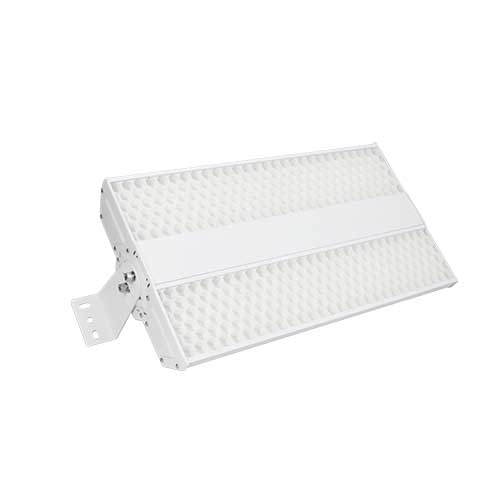

NOAH Linear High Bay Light-A1/A2

Linear high bay LED lighting offers a high level of lumen output, so it is a great option for large spaces with a lot of distance between ceiling and floor.

● 1ft 2ft 3ft 4ft 50w 100w 150w 200w 250w 300w 400w

● Low glare, no flicking, UGR<19

● 0-10v dimmable, dali control, Zigbee wifi control, emergency battery back-up are available

●Ceiling installation, chain installation are available

Send Email:

[email protected]

Products DETAILS

NOAH Linear High Bay Light-A1/A2

Linear and panel LED high bay, with advatange below;

1. Wide wattage range, 1ft 2ft 3ft 4ft 50w 100w 150w 200w 250w 300w 400w all available
2. Low glare, no flicking, UGR<19
3. DALI / 0-10v/ triac dimming/ motion sensor/Zigbee/emergency backup are available

4. Ceiling installation, chain installation are available

Applications: sports hall, school, warehouse, workshop, indoor gym, storage and so on.
Linear and panel LED high bay
Model NO. Power  Input
Voltage 		Chip Brand  Iuminous Flux
(lm) 		Viewing
Angle 		L*W*H (MM) N.W(KG)
/PC 		G.W(KG)
/CTN 		packing Size(MM)
1pc/CTN
NOAH-LHB50-A1 50W AC85-305V Philips/Cree 6500lm 100° 350*126*172 2.5KG 3.7KG 410*145*200
NOAH-LHB100-A1 100W AC85-305V Philips/Cree 13000lm 100° 634*126*172 3.7KG 4.7KG 695*145*200
NOAH-LHB150-A1 150W AC85-305V Philips/Cree 19500lm 100° 917*126*172 4.7KG 5.7KG 975*145*200
NOAH-LHB200-A1 200W AC85-305V Philips/Cree 26000lm 100° 1200*126*172 5.7KG 6.8KG 1260*145*200
NOAH-LHB100-A2 100W AC85-305V Philips/Cree 13000lm 100°  392*312*172 3.7KG 4.5KG 410*325*200
NOAH-LHB150-A2 150W AC85-305V Philips/Cree 19500lm 100° 675*312*172 5.7KG 6.5KG 695*325*200
NOAH-LHB200-A2 200W AC85-305V Philips/Cree 26000lm 100° 675*312*172 5.7KG 6.5KG 695*325*200
NOAH-LHB250-A2 250W AC85-305V Philips/Cree 32500lm 100° 958*312*172 9.5KG 10.0KG 975*325*200
NOAH-LHB300-A2 300W AC85-305V Philips/Cree 39000lm 100° 958*312*172 9.7KG 10.3KG 975*325*200
NOAH-LHB400-A2 400W AC85-305V Philips/Cree 52000lm 100° 1241*312*172 11.4KG 12.0KG 1260*325*200

Linear and panel LED high bay
