NOAH Linear High Bay Light-B
● 50W-500W 1ft to 4ft
● 130LM/W, higher LM/W can be customized
● 30°/60°/90°/80*155° Beam Angle Optional lens
● 0-10v dimmable, dali control, Zigbee wifi control, emergency battery back-up are available
Products
Products DETAILS
NOAH Linear High Bay Light-B
Product Features for NOAH Linear High Bay Lights:
1.Wattage from 50w to 500w, housings used 6060-T5#Aluminum, good heat dissipation
2.The surface used anode-oxidized technology, made the protection performance more excellent
3.IP66 protection level
4.MEAN WELL power supply(LED driver)
5. 30°/60°/90°/80*155° Beam Angle Optional lens are used to meet the function and effect as linear high bay light/ warehouse light/ flood light,etc.
NOAH Linear High Bay Light Speicification
| Model NO. | Power |
Input Voltage |
Chip Brand |
Iuminous Flux (lm) |
Viewing Angle |
L*W*H (MM) |
N.W(KG) /PC |
G.W(KG) /CTN |
packing Size(MM) 1pc/CTN |
| NOAH-LHB50-B | 50W | AC85-305V | Philips | 6500lm | 30°/60°/90°/80*155° | 353*115*130 | 2.5KG | 3.7KG | 430*150*170 |
| NOAH-LHB100-B | 100W | AC85-305V | Philips | 13000lm | 30°/60°/90°/80*155° | 580*115*130 | 3.7KG | 4.7KG | 650*150*170 |
| NOAH-LHB150-B | 150W | AC85-305V | Philips | 19500lm | 30°/60°/90°/80*155° | 850*115*130 | 4.7KG | 5.7KG | 920*150*170 |
| NOAH-LHB200-B | 200W | AC85-305V | Philips | 26000lm | 30°/60°/90°/80*155° | 1120*115*130 | 5.7KG | 6.8KG | 1190*150*170 |
| NOAH-LHB250-B | 250W | AC85-305V | Philips | 32500lm | 30°/60°/90°/80*155° | 1380*115*130 | 6.5KG | 7.7KG | 1450*150*170 |
| NOAH-LHB300-B | 300W | AC85-305V | Philips | 39000lm | 30°/60°/90°/80*155° | 580*350*170 | 9.7KG | 10.9KG | 650*390*210 |
| NOAH-LHB400-B | 400W | AC85-305V | Philips | 52000lm | 30°/60°/90°/80*155° | 1120*230*170 | 11.4KG | 12.7KG | 1190*270*210 |
| NOAH-LHB500-B | 500W | AC85-305V | Philips | 65000lm | 30°/60°/90°/80*155° | 1380*230*170 | 13.5KG | 14.9KG | 1450*270*210 |

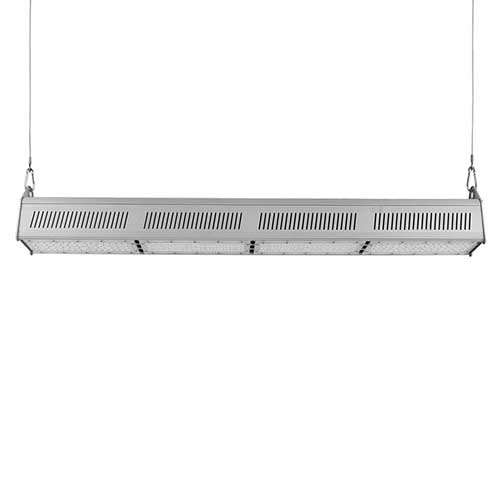

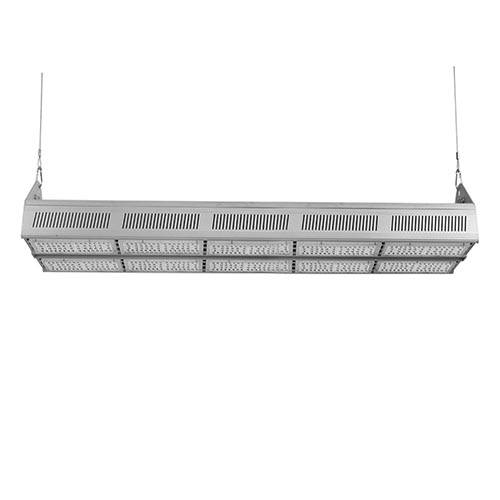

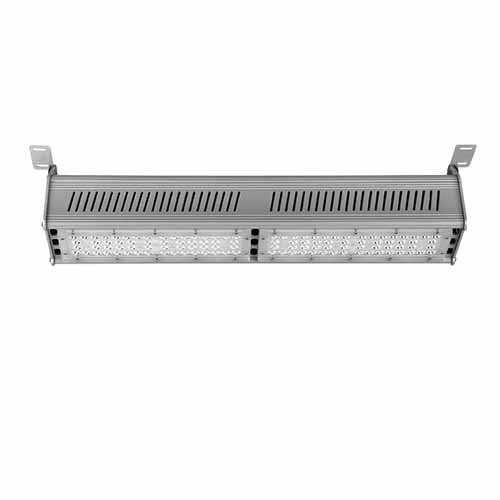

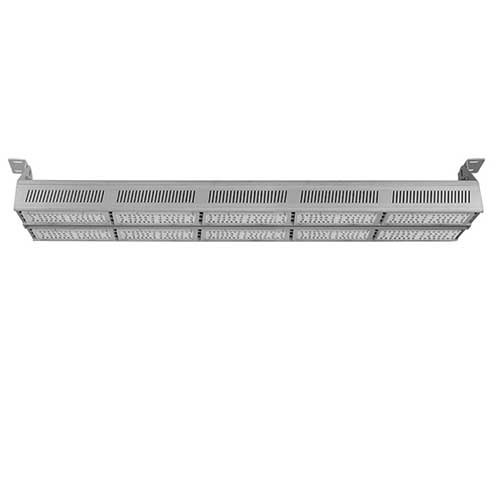

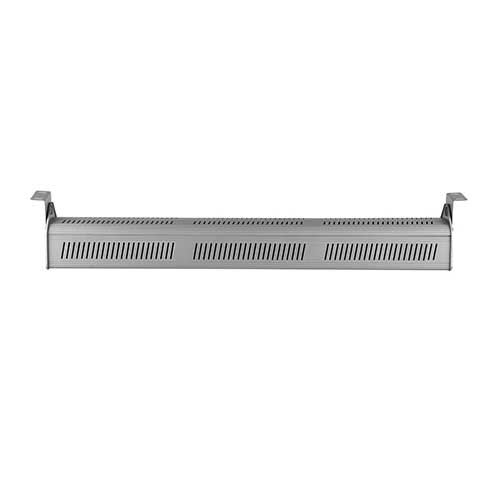

NOAH Linear High Bay Light Pictures
NOAH Linear High Bay Light Details
Related products for LED high bay lights
MOON UFO High Bay-A CRANE LED High Bay
Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
