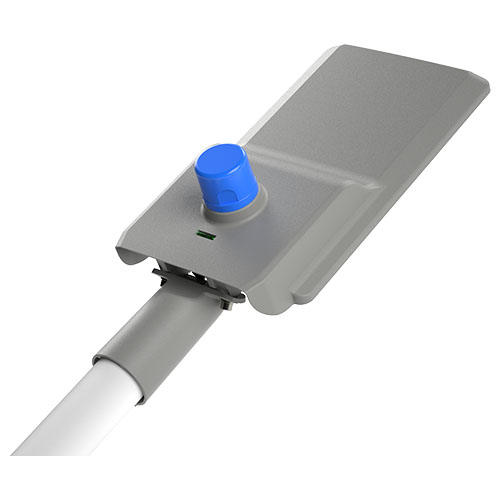

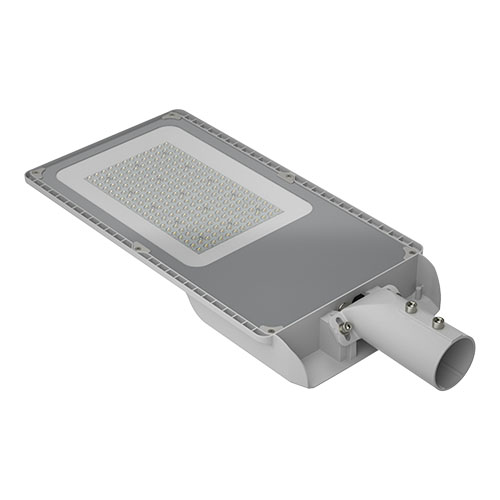

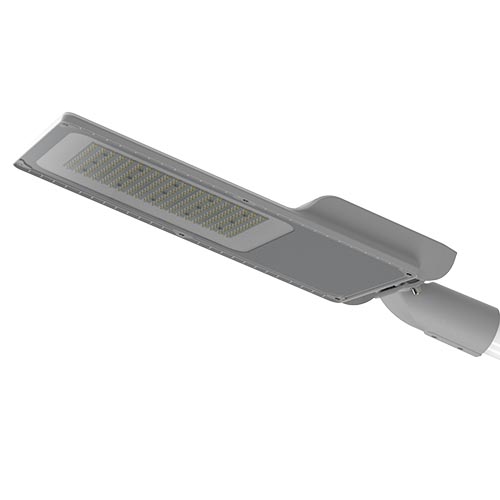

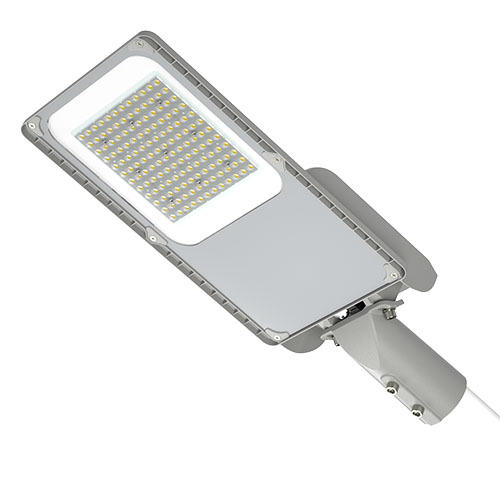

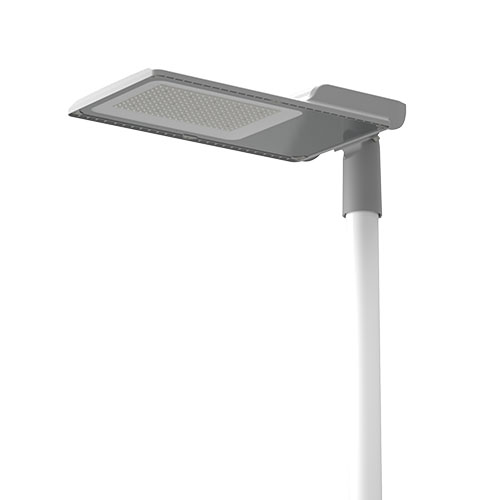

SLH LED Street Light-A
1. 50w 70w 100w 120w 150w 180w, 200w, 240w, IP66 waterproof, 180LM/W
2. wide choice of optics, type II,III IV, 60°, 90°, 70*140° light distribution
3.super smooth surface, ADC12 die-cast aluminum heat sink, efficiency up to 96W/M.K, bubble level with easier installation
4.Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc
5. Adopt advanced finite element analysis technology to optimize the heat dissipation structure. The lamp temperature is well controlled,

The temperature difference between inside and outside is small, the heat can be distributed evenly, and the luminous flux maintenance rate is high.

Model NO.	Power	Input	Chip Brand	Material	Iuminous Flux	Beam Angle	Lamp Size(MM)	G.W(KG)	packing Size(MM)
		Voltage			(lm)			/CTN	1pc/CTN
BS-SLH50-A	50w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w	T2M/T3M/T4 M/60/90/70*140D	515*190*98MM	3.0KG	570*200*145MM
BS-SLH70-A	70w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		515*190*98MM	3.5KG	570*200*145MM
BS-SLH100-A	100w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		575*242*109MM	4.0KG	630*250*145MM
BS-SLH120-A	120w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		575*242*109MM	4.5KG	630*250*145MM
BS-SLH150-A	150w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		615*262*110MM	5.0KG	680*270*145MM
BS-SLH180-A	180w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		615*262*110MM	5.5KG	680*270*145MM
BS-SLH200-A	200w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		685*287*110MM	6.0KG	730*295*145MM
BS-SLH240-A	240w	AC90-305V	LUMILEDS SMD3030	Die-cast Aluminum	180lm/w		685*287*110MM	6.5KG	730*295*145MM



SLH-A LED Street Lights sizes

SLH LED Street Lights Lighting Distribution

SLH LED Street Lights Installation

SLH LED Street Lights Application

1. Residential Complex

2. Small traffic round - about

3. Lighting of secondary roads / side roads

4. Parks & gardens • Security lighting
