RHEA LED Flood Light

RHEA LED Flood Light-A

The modular design 170lm/w RHEA Series Flood Light Fixtures are perfect for a variety of outdoor lighting applications from Billbord and Building lighting to Road and Bridge lighting.

●30W -800W

● 170Lm/w

● Beam angle:Symmetric 30° 60° 90° Asymmetric 80*150°

● IP66 water-proof

Send Email:

[email protected]

Products

Products DETAILS

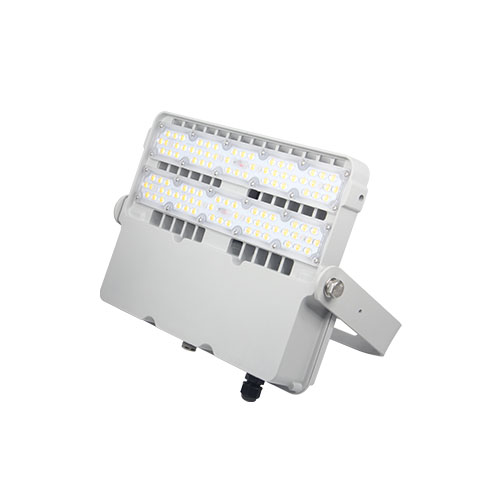

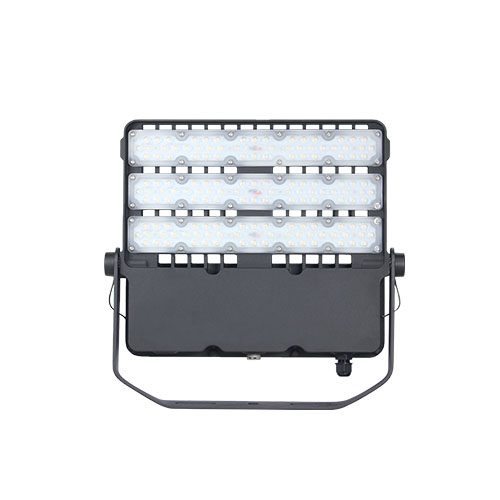

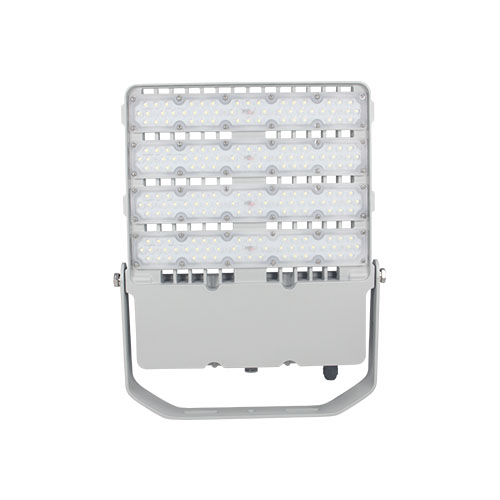

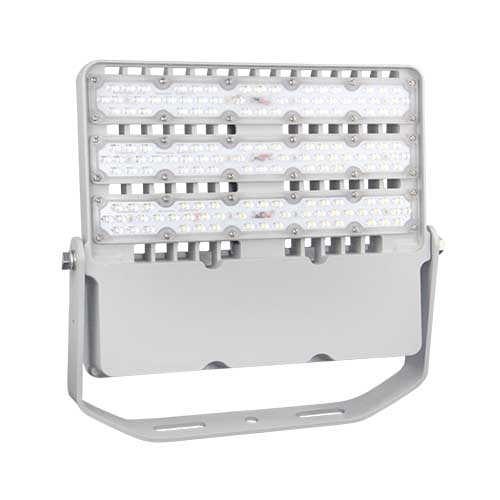

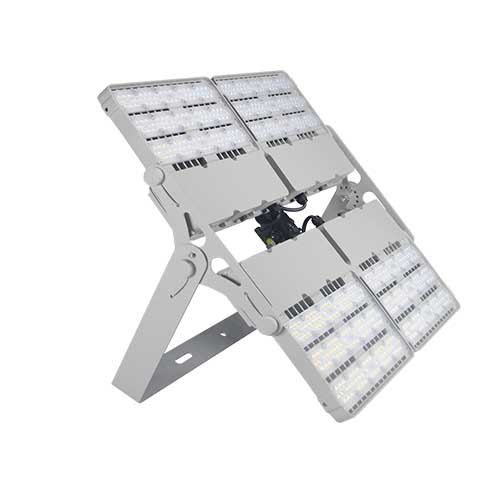

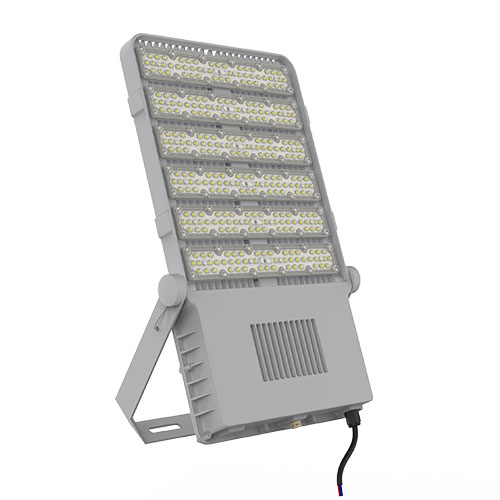

RHEA LED Flood Light-A

RHEA LED Flood Light with High Brightness Wide Beam Angle, Security Work Landscape Spotlights Flood Led light

Models can be combined into the one you need
High Brightness, Up to 150lm/w ,170lm/w
Beam Angle of Lens: 30°/60°/90°/ Symmetric 80*140°/80*150°
Integrated Aluminium Die-Casting Fan,Honeycomb Heat Dissipation Design
High Quality Meanwell / Inventronic Driver
IP Rating IP66
Black and silver for option

RHEA LED Flood Lights Features

30W 50W 80W 100W 150W 200W 300W 400W 600W 800W for choosing
Symmetric 30° 60° 90° Asymmetric 80*150° Beam Angle
Integrated Die-Casting Aluminum, honeycomb heat dissipation design
IP66 waterproof, black or sliver color housings for option

RHEA Series Flood Light Fixtures Specification

Item Number	RHEA-FL30/50	RHEA-FL100/150	RHEA-FL200/300	RHEA-FL400	RHEA-FL600	RHEA-FL800
Wattage	30/50W	100/150W	200/300W	400W	600W	800W
Lumen Output	5100/8500lm	17000/25500lm	34000/51000lm	68000lm	102000lm	136000lm
LED Quantity	48PCS	96/144pcs	192/288pcs	384pcs	576pcs	768pcs
Size(MM)	L346W200H65	36524560/	36535560/	69535560	118078064	139071060
Size(MM)	L346W200H65	36530060	59039064	69535560	118078064	139071060
LED Chip	Lumileds 3030/5050
Luminous Efficacy	150LM/W 170LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	30° / 60°/90° /80140° /80150°
IP Rating	IP66
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

RHEA LED Flood Lights' LED Chips and details

Long life time: lUMILEDS LED chip and Patented design for heat dissipation.
Application: IP66 and applied in workshop, plant, factory,warehouse, toll gate, gas station, supermarket, exhibition hall, gym, chemical factory as led high bay light.
Energy saving, beautiful design and easy installation.
Easy to install and several installation methods availbale.
Advanced driver to ensure stabel performace and high safty.

RHEA LED Flood Lights Sizes

RHEA LED Flood Lights with Integral Die-casting Process

RHEA LED Flood Lights Installation

Fix the bracket on the

Connect the cables

Then adjust the beam angle

RHEA LED Flood Lights Application

RHEA LED Flood Lights widely use for outdoor lighting project, such as sport field, parking lot, tunnel, building, bridge ect.

The LED Flood Lights offers the latest high-efficiency LED sports lighting systems, providing a complete lighting solution with the PerfectPlay wireless control system with integrated LED floodlights, for all types of outdoor sports and taking into account the requirements from the smallest through to the most complex outdoor sports facility.
