LED Tunnel Flood Light

This LED flood light is designed to be energy-efficient, providing bright illumination while consuming less power. It is a cost-effective lighting solution.

●50W -1600W

● 120-140Lm/w

● Beam angle: 30/60/90/78*132degree

● IP66 water-proof

Send Email:

[email protected]

Products DETAILS

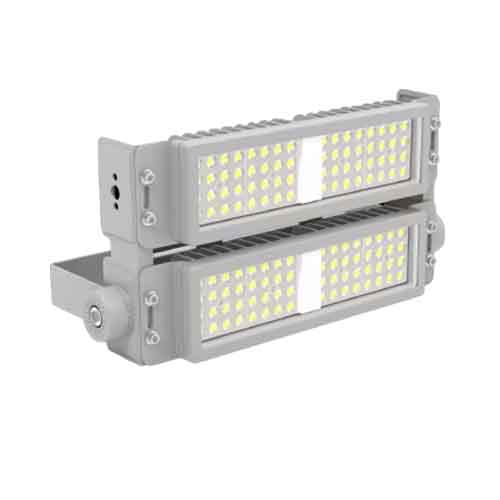

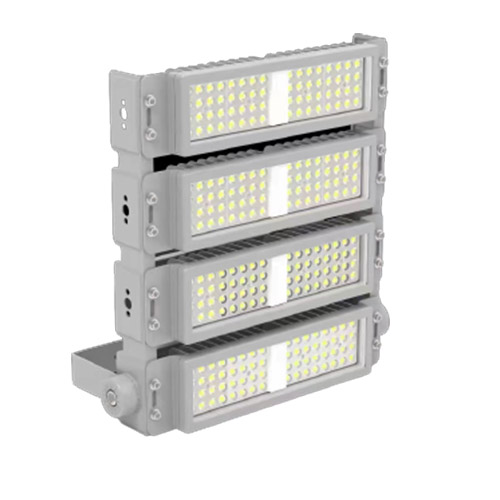

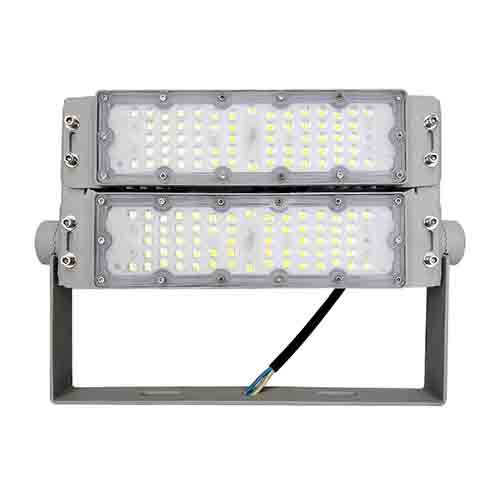

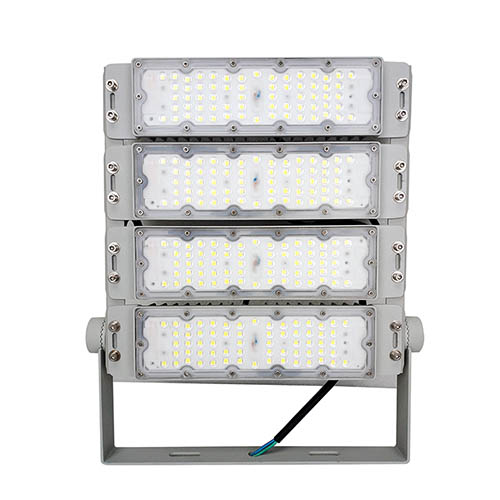

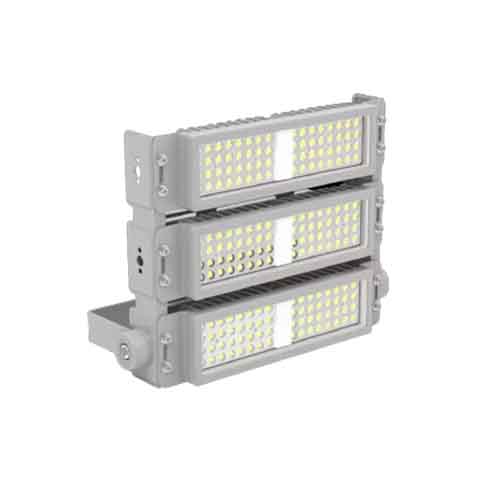

LED Tunnel Flood Light

Competitive modular LED tunnel flood light

1. Multiple wattage option from 50W to 1600W,  50w/100w/200w per module

2. Multiple optics option 30/60/90/78*132degree

3. DALI dimming/ DMX/ 0-10v dimming are available

4. With Lumileds SMD3030 chip, and world famous driver brand: Meanwell / Phillips/ Xinchuang

5. IP65 waterproof, widely used for highways, tunnel, indoor outdoor sport courts, stadium, factory, station, warehouse, workshop, street, square, building,etc
LED tunnel flood light specification
Model Product Name Power Led Chips Specification Product G.W(KG) Lamp Size(mm) Remarks
BS-TL100W-A TUNNEL FLOOD LIGHT 100W PHILIPS/CREE 3030 INPUT:100-265VAC
IP GRADE: IP65
LUMINOUS: 120-140LM/W
CRI: RA70
C.C.T: 2700-6500K
ANGLE:60/90 		3.5 L:400*W:100*H180 100W per module
BS-TL200W-A 200W 6 L:400*W:205*H180
BS-TL300W-A 300W 8 L:400*W:305*H180
BS-TL400W-A 400W 10 L:400*W:410*H180
BS-TL500W-A 500W 12 L:400*W:515*H180
BS-TL600W-A 600W 15 L:765*W:305*H180
BS-TL800W-A 800W 18 L:765*W:410*H180
BS-TL1000W-A 1000W 22 L:765*W:515*H180
BS-TL50W-B TUNNEL FLOOD LIGHT 50W PHILIPS/CREE 3030 INPUT:100-305VAC
IP GRADE: IP65
LUMINOUS: 120-140LM/W
CRI: RA70
C.C.T: 2700-6500K
ANGLE:30/60/90/78*132 		2 175x350x75mm 50W per module
BS-TL100W-B 100W 3.5 250x350x75mm
BS-TL150W-B 150W 5 340x350x75mm
BS-TL200W-B 200W 6 410x350x75mm
BS-TL250W-B 250W 7 485x350x75mm
BS-TL300W-B 300W 9 575x350x75mm
BS-TL400W-B 400W 12 665x370x75mm
BS-TL500W-B 500W 15 665x455x75mm
BS-TL600W-B 600W 17 665x575x75mm
BS-TL200W-C  TUNNEL FLOOD LIGHT 200W PHILIPS LUMILEDS 3030 INPUT:100-265VAC
IP GRADE: IP65
LUMINOUS: 150LM/W
CRI: RA70
C.C.T: 2700-6500K
ANGLE:30/60/90 		6.8 W180*L505*H150  200W per module
BS-TL400W-C 400W 11 W180*L505*H320
BS-TL600W-C 600W 15 W180*L505*H490
BS-TL800W-C 800W 19 W180*L505*H660
BS-TL1200W-C 1200W 28 W250*L985*H490
BS-TL1600W-C 1600W 39 W250*L985*H660


Modular LED tunnel flood light under mass production

Application for led tunnel flood lights
Can be used for highways, tunnel, indoor outdoor sport courts, stadium, factory, station, warehouse, workshop, street, square, building,etc

Related products for LED flood lights

               RHEA LED Flood Light                                THEA LED Flood Light



Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
