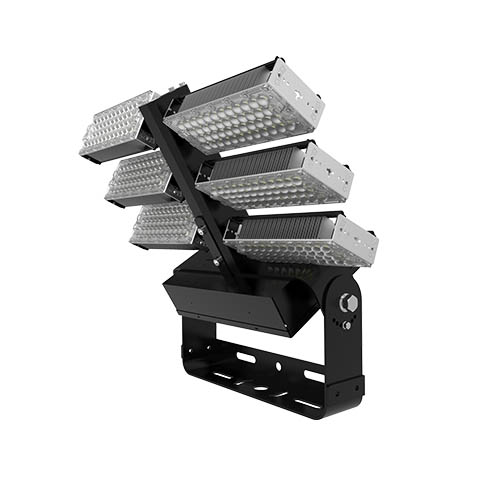

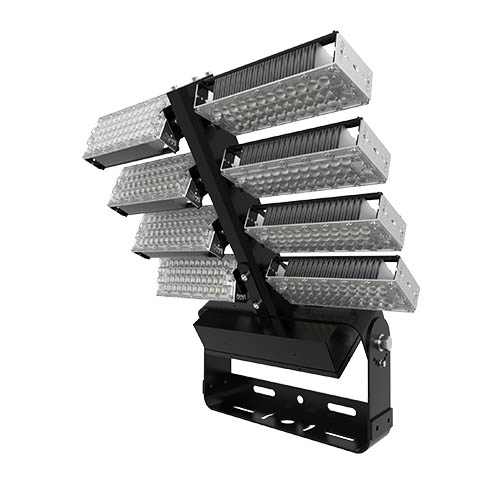

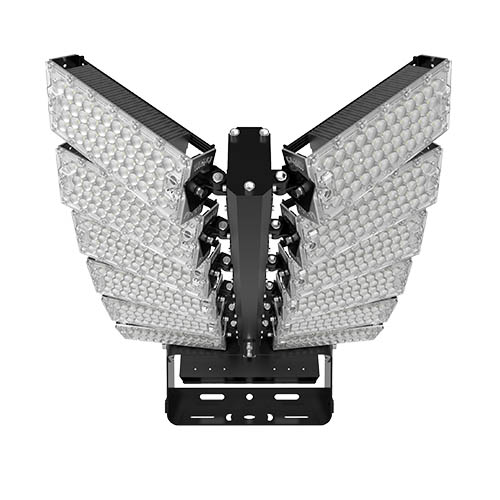

PRIMUS LED High Mast Light-B

PRIMUS-B Series High Mast Floodlights with 360 degree rotatable modules, designed specifically for large area and sports applications, IP66 rated LED floodlighting

● Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling● beam angle(25°40° 60°90°120°)

● Rotatable modules offering maximum customization

● IP66 water-proof

●Dialux simulation, lighting solution for your projects can be provided

Send Email:

[email protected]

Products DETAILS

PRIMUS LED High Mast Light-B

Primus LED High Mast Light, Sports and Area Floodlighting, Stadium LED Flood Light,Sports Lighting Rotatable Module IP65 160LM/W

Product Features & Benefits:
• IP65 rated LED floodlighting
• Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
• Rotatable modules offering maximum customization
• Heavy duty stirrup mounting bracket
• Multiple optics available
• "instant-on, flicker-free" cold start, and industry-leading High brightness LED chip,Luminous flux up to 155-160Lm/W.
• Protractor scale for easier aiming

High Power PRIMUS Series Sports and Area Floodlighting with 600W/720W/800W/960W/1000W/1200W/1440W,which produces up to 223,200 lumens, it is designed specifically for large area and sports applications, sports field, this area floodlights and LED high mast luminaires can reduce operational and maintenance costs with modules.
Item Number PRIMUS-HM720-B PRIMUS-HM960-B PRIMUS-HM1200-B PRIMUS-HM1440-B
Wattage 720W 960W 1200W 1440W
Lumen Output 115200lm 153600lm 192000lm 230400lm
LED Quantity 276PCS 368pcs 460pcs 552pcs
Size(MM) L694*W268*H723 694*268*855 694*268*987 694*268*1119
LED Chip Lumileds 5050
Luminous Efficacy 165LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 20° / 40° / 60° / 90° / 140×100°
IP Rating IP65
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Material Extruded Aluminum housing+PC lens
1. Different Beam Angle & Power for PRIMUS LED High Mast Light Sports and Area Floodlighting

LUMILES SMD 5050 LED CHIPS flood light Huniform illumination,long life,good stable.

20° / 40° / 60° / 90° / 140×100°

720W 960W 1200W 1440W For your option


2. PRIMUS LED High Mast Light Sports and Area Floodlighting with Waterproof IP65


3. PRIMUS LED High Mast Light Sports and Area Floodlighting Features

Adjustable:
1. Rotatable module
2. Replaceable optical lens
3. Protractor scale for easier aiming
4. Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5. Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.

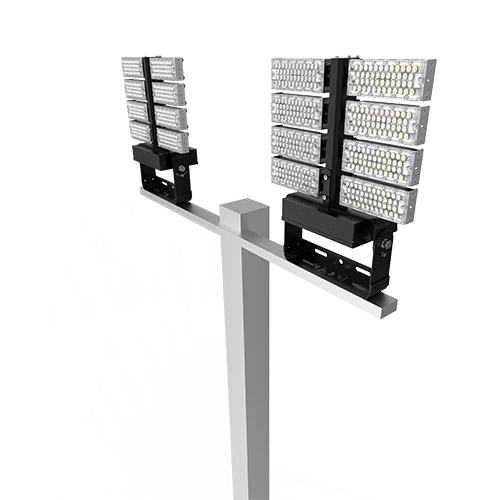

4. PRIMUS LED High Mast Light with simple installation with convenient adjustability.

Rotatable modules outdoor led flood lights

Bracket :Thicken bracket, adjustable different angle.

5. PRIMUS LED High Mast Light Sports and Area Floodlighting Application

Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, also can be used for swimming pool, car parks, production lines, exhibition halls and etc.



Related products for LED high mast lights



 APOLLO LED Stadium Light                           GAEA LED High Mast Light-B                    ARES LED Sports Light



Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
